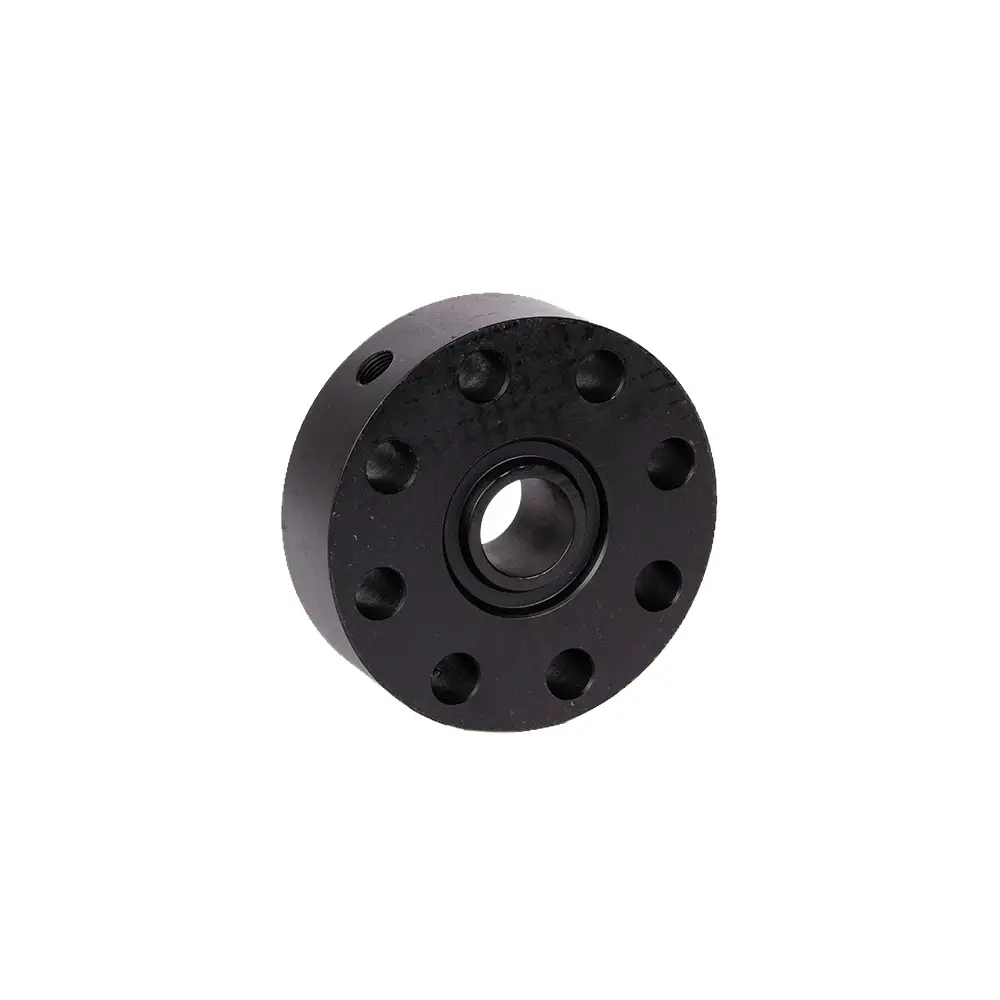

Full Face Bleed Rings

Name: Full Face Bleed Rings
SKU: 305
Availability: InStock

"*" indicates required fields

This field is hidden when viewing the form

Next Steps: Sync an Email Add-On

To get the most out of your form, we suggest that you sync this form with an email add-on. To learn more about your email add-on options, visit the following page: (https://www.gravityforms.com/the-8-best-email-plugins-for-wordpress-in-2020). Important: Delete this tip before you publish the form.

Key Features:

Bleed Rings are sold to be installed between flanges and fit within the Bolt Circle. Full Face Bleed Rings match the flange O.D., Bolt Circle and Bolt Hole dimensions of the mating flange.

Sizes Available: 0.50″ to 24″, larger sizes available.
Material Grades: A516-70, A105, A350 LF2, 304/304L, and 316/316L are common. Additional material grades are available upon request.
Machined Facing: Raised Face (RF) or Ring Type Joint (RTJ).
Port Options: NPT or SW ports
Applications: Measurement attachments or bleeding pipelines and vessels.
Ordering Info: Specify size, pressure class, material grade, facing finish (RF or RTJ), and port type (NPT or SW).
