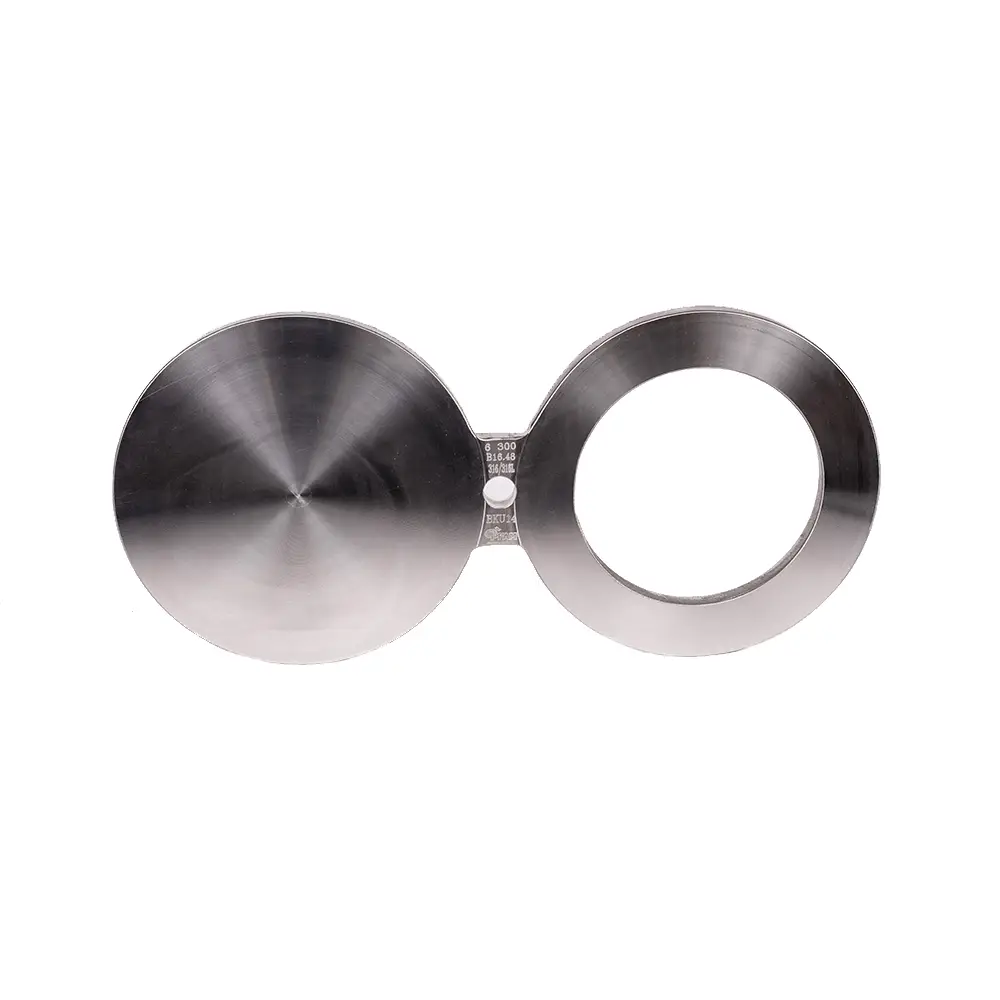

Spectacle Blind / Figure 8 Blind

Name: Spectacle Blind / Figure 8 Blind
SKU: 288
Price: 100.00 USD
Availability: InStock

"*" indicates required fields

This field is hidden when viewing the form

Next Steps: Sync an Email Add-On

To get the most out of your form, we suggest that you sync this form with an email add-on. To learn more about your email add-on options, visit the following page: (https://www.gravityforms.com/the-8-best-email-plugins-for-wordpress-in-2020). Important: Delete this tip before you publish the form.

Key Features:

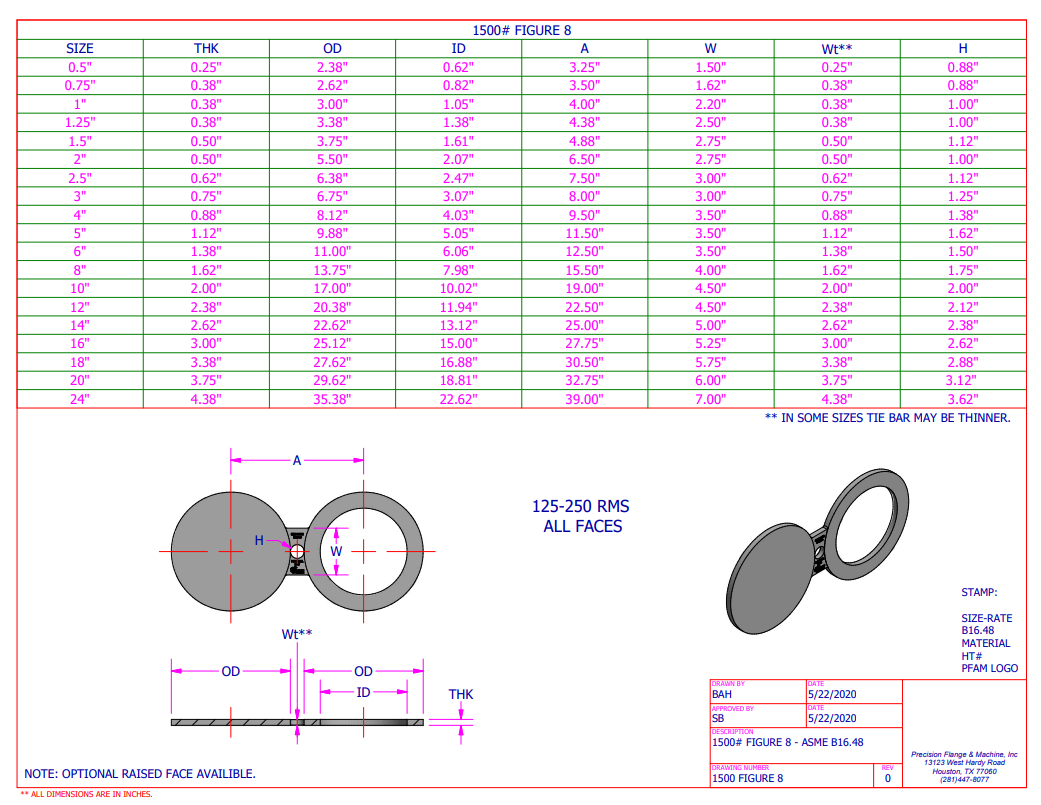

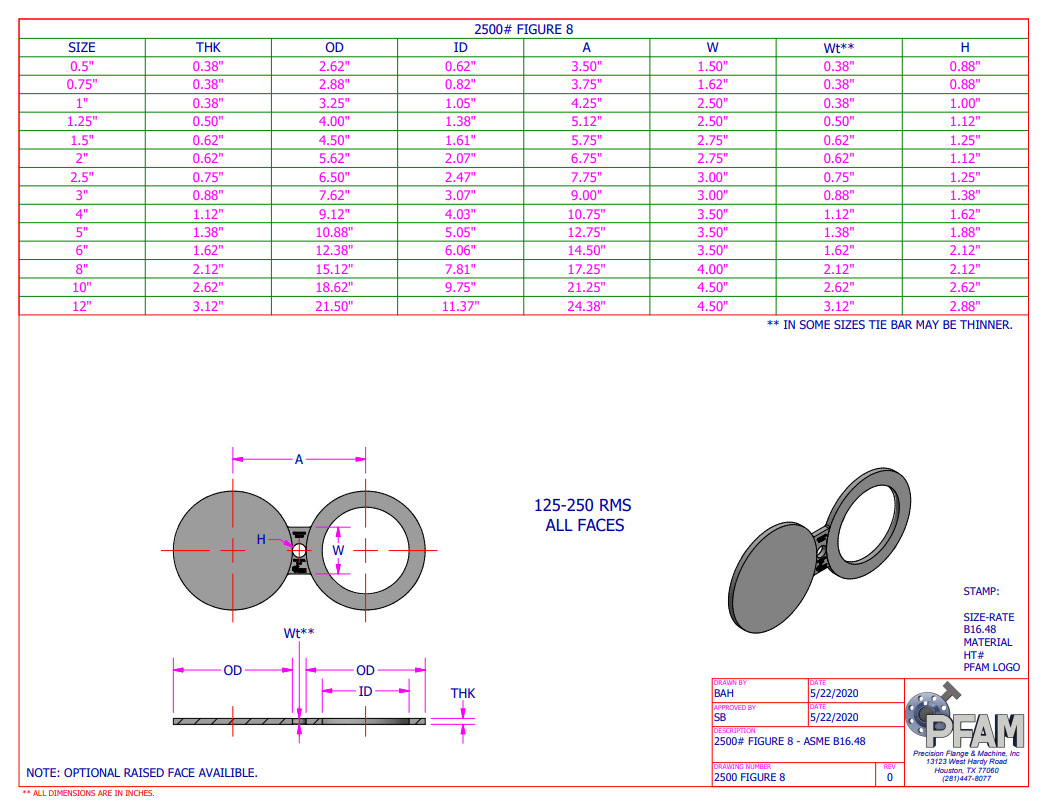

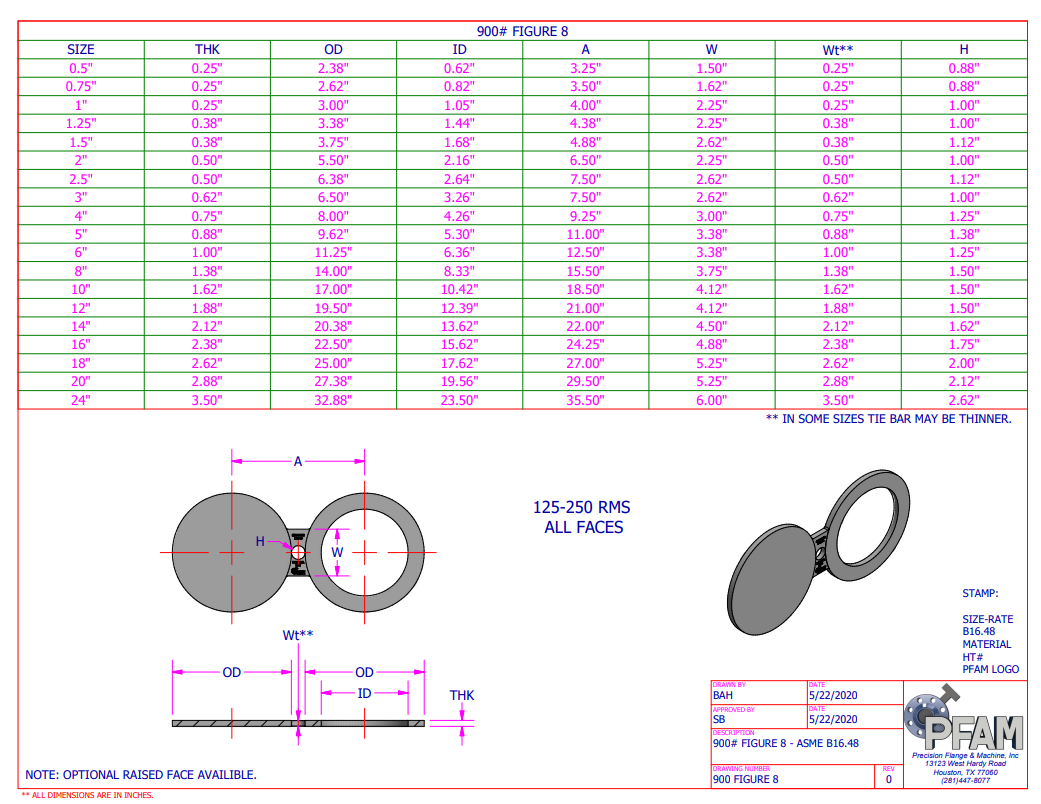

A figure-8 blank (also called a spectacle blank) is a pressure-retaining plate with one solid end and one open end connected with a web tie bar. Figure-8 blanks are manufactured to meet ASME B16.48 or customer specified requirements.

Sizes Available: 0.50″ to 60″ and larger sizes available.
Material Grades: A105, A350 LF2, A516-70, 304/304L, and 316/316L are common, more grades are available.
Machined Faces: Flat face machined to match the mating B16.5 Flanges. Raised Faces, Male Ring Type Joint (RTJ) and Female RTJ are optional.
Applications: Simple valve used for process pipelines and vessels, perfect for fluid control in industrial settings.
Ordering Info: Specify size, pressure class, material grade, face finish and applicable standards.
