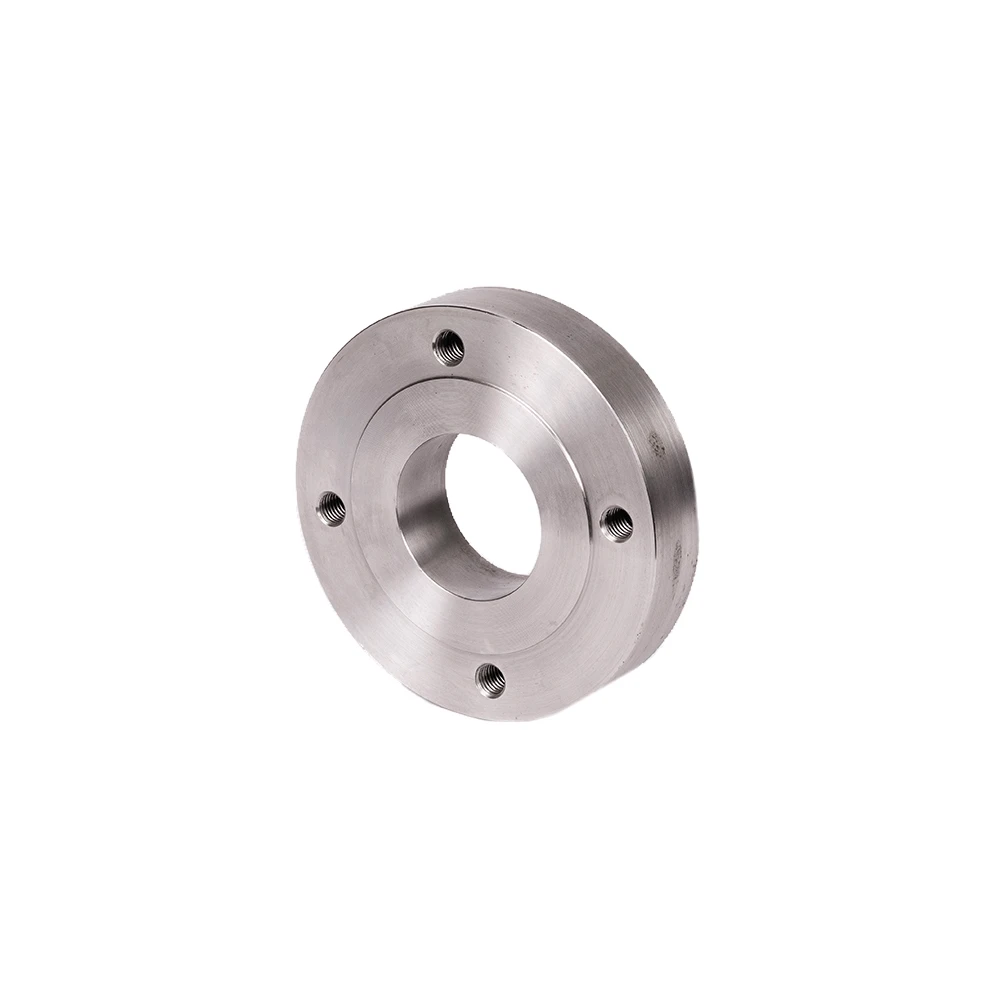

Studding Outlet

Name: Studding Outlet
SKU: 336
Price: 100.00 USD
Availability: InStock

"*" indicates required fields

This field is hidden when viewing the form

Next Steps: Sync an Email Add-On

To get the most out of your form, we suggest that you sync this form with an email add-on. To learn more about your email add-on options, visit the following page: (https://www.gravityforms.com/the-8-best-email-plugins-for-wordpress-in-2020). Important: Delete this tip before you publish the form.

Key Features:

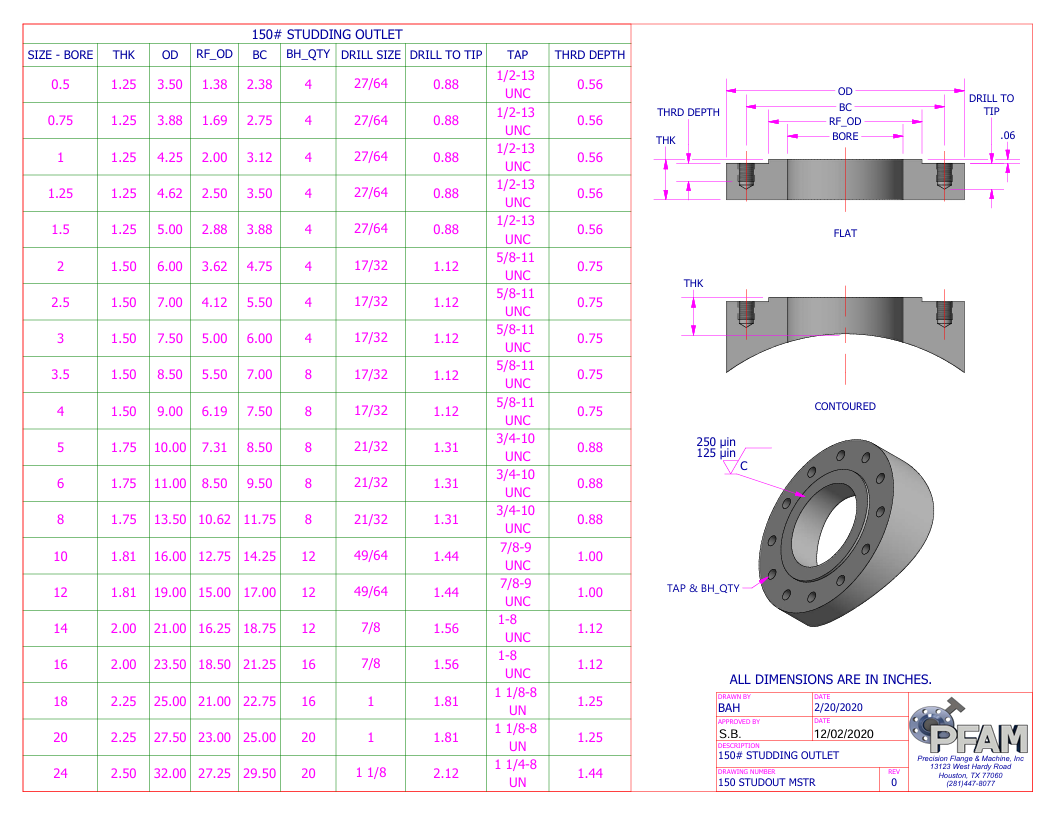

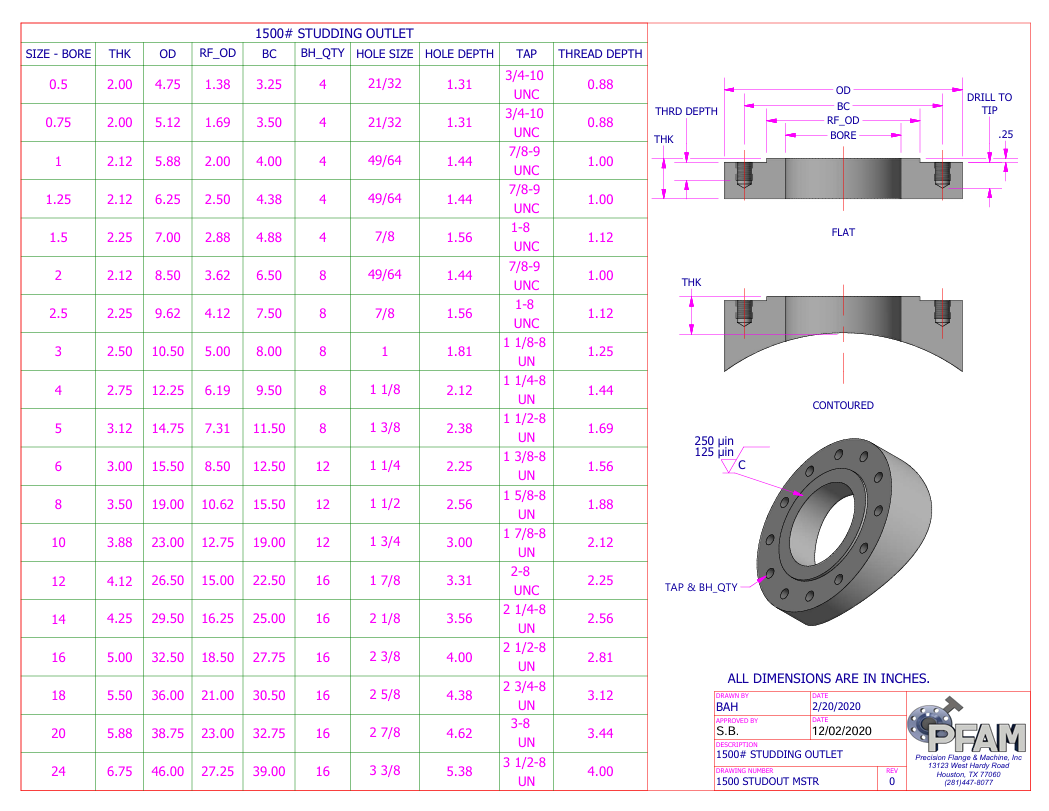

Sizes Available: NPS 1/2” – 24” available for quick turn, larger sizes also available.
Material Grades: Studding Outlets are commonly provided in A/SA-105N. They can also be made from a full range of stainless and alloy materials.
Specifications: ASME B16.5 Flange Tolerances unless specified otherwise.
Thickness: The standard thickness for all studding outlets is the minimum required per ASME Section VIII Division I Paragraph UG-43(d) for thread engagement and an I.D. mount. It is important to note that each individual application should be analyzed for proper thickness.
Drilling and Tapping: Studding Outlets are furnished to ASME B16.5 specifications unless otherwise specified. Thread depth is in accordance with ASME Section VIII Division I Para. UG-43(g) for design temperature not to exceed 650°F, a base metal stress of 17,500 psi(g), and a stud stress of 25,000 psi(g). All other materials exceeding these stresses should be checked for UG-43 compliance.
Bore: Standard bore sizes are the same as NPS. Other sizes can be made available upon request.
Curving: Connections can be furnished contoured to fit any shell, head, pipe or Vessel at additional cost. Specify diameter to be mounted.
Machined Faces: The Studding Outlet minimum thickness “T” includes proper raised face per ASME B16.5. Outlets can be supplied with any special facing as needed upon request.
Applications: Normal Service, Low Temperature Service, High Temperature Service, and NACE.
Ordering Info: Size, Class, Material Grade, Raised Face or Ring Type Joint, flat bottom or diameter of the contour.
