Bleeder Blind

Name: Bleeder Blind
SKU: 348
Price: 100.00 USD
Availability: InStock

"*" indicates required fields

This field is hidden when viewing the form

Next Steps: Sync an Email Add-On

To get the most out of your form, we suggest that you sync this form with an email add-on. To learn more about your email add-on options, visit the following page: (https://www.gravityforms.com/the-8-best-email-plugins-for-wordpress-in-2020). Important: Delete this tip before you publish the form.

Key Features:

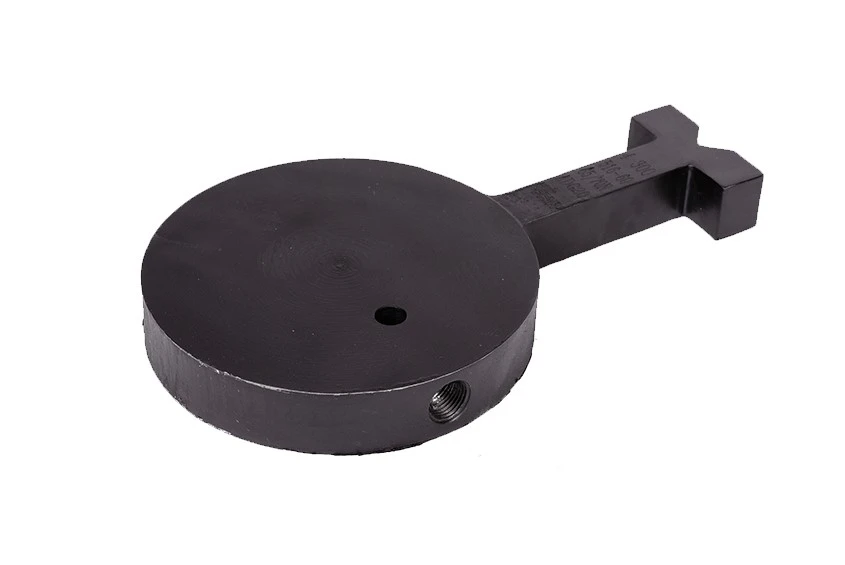

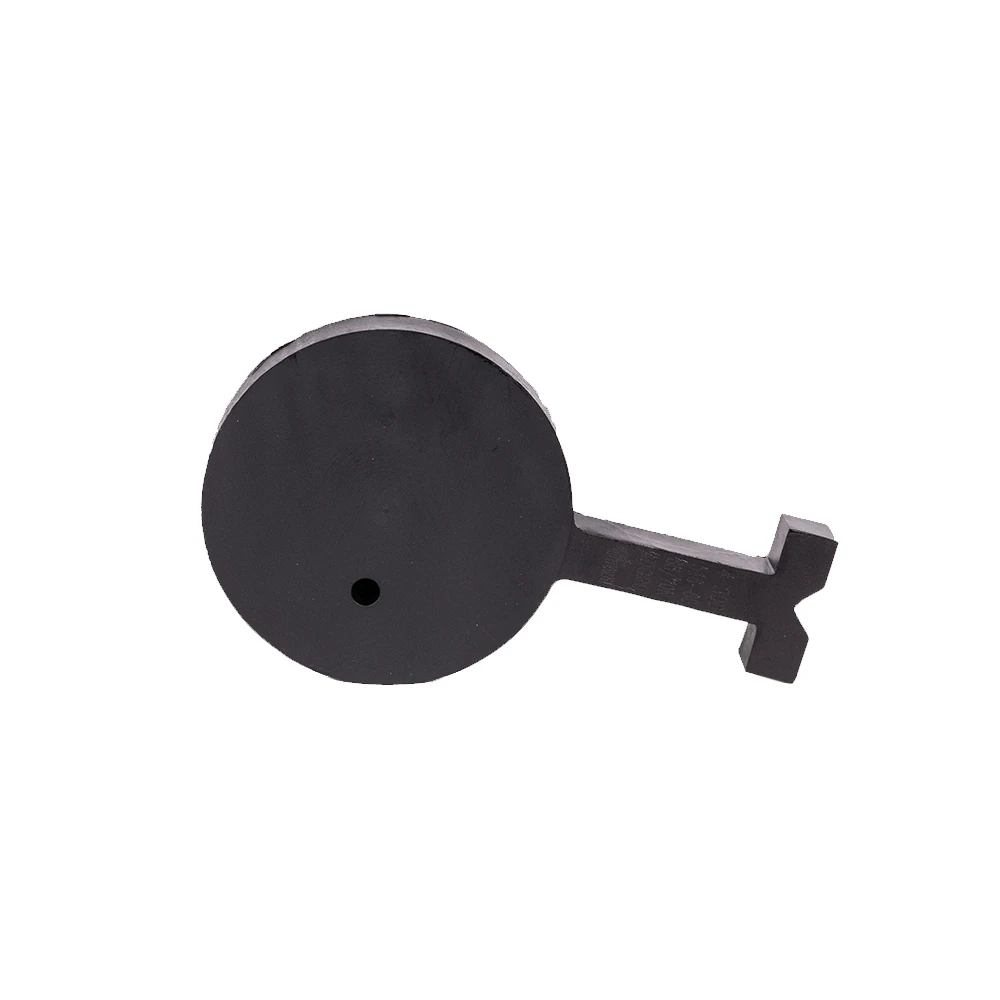

“Vent Blinds” and “Steam Out Blinds” are Bleeder Blinds. Using the paddle blank design, they incorporate a port for bleeding liquids, venting, and purging gases. It has a “V “notched T-handle to signify Vent and can lift the part in any orientation. It is generally used between raised face flanges and has a bleeder hole location based on the mating pipe schedule.

Sizes Available: 0.50″ to 60″ and larger sizes available.
Material Grades: A105, A350 LF2, A516-70, 304/304L, and 316/316L are common, more grades are available.
Machined Faces: Flat face machined to match the mating B16.5 Flanges. Raised faces and Female RTJ faces are optional.
Port Options: NPT or SW ports
Applications: Simple blind used for venting, draining or purging process pipelines.
Ordering Info: Specify size, pressure class, material grade, face finish, NPT or SW Ports, mating pipe schedule, and applicable customer specifications.
