Series 500 Universal Orifice Plate
Product Details
Bore: Concentric, Eccentric, Segmental, or Quadrant
Restriction (Square Edge Bore)
Measurement (Bore With Bevel)
Vent / Drain Hole(s)
Polished Finish (Standard)
Serrated Finish
How to Order
1) Size
2) Material Grade
3) Thickness
4) Bore Size
5) Tag Number
6) Measurement or Restriction.

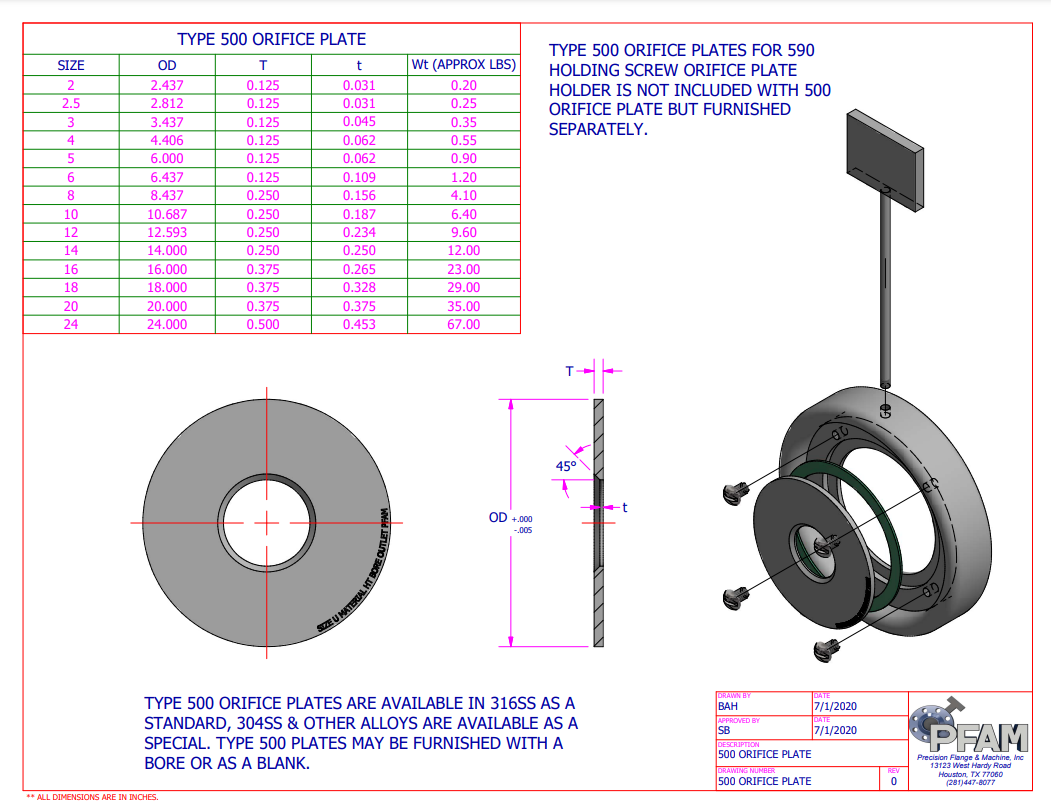

Drawings
Select One
500 SERIES PTOP
VIEW / DOWNLOAD
