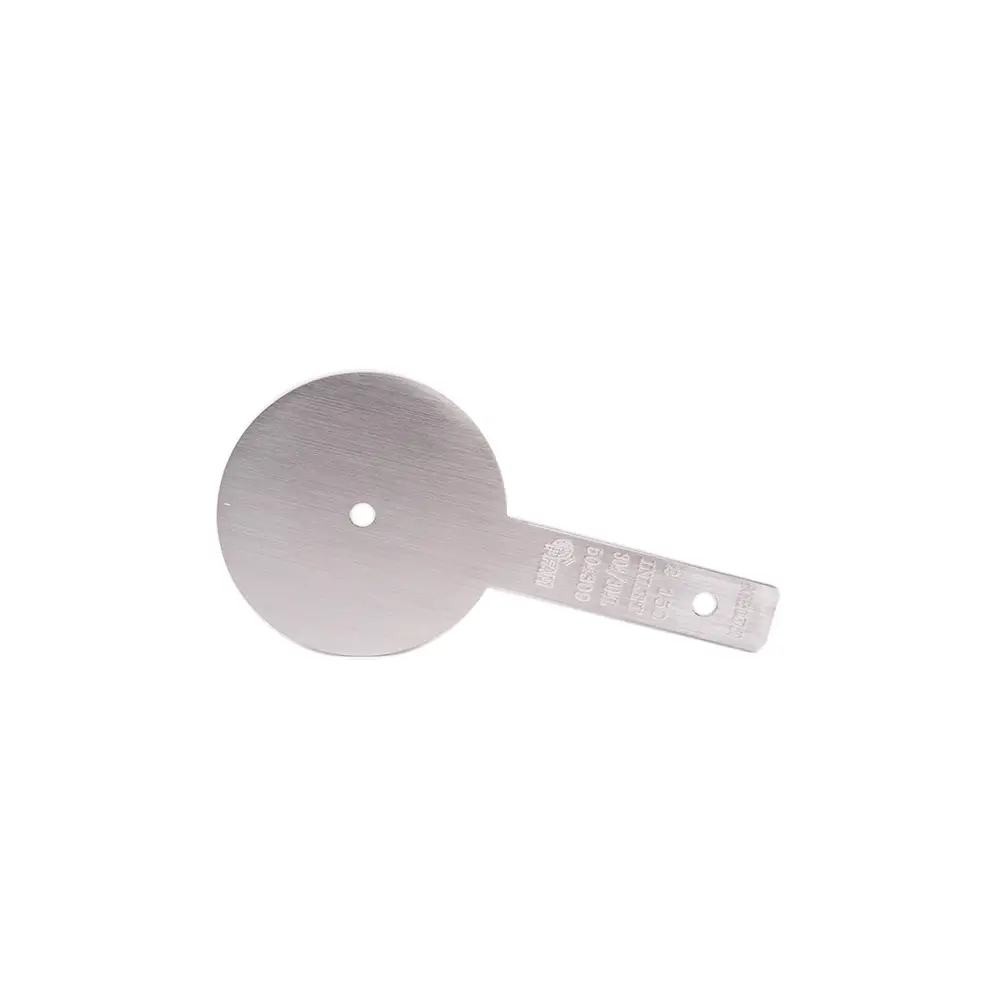

Series 520 Paddle Type

Key Features:

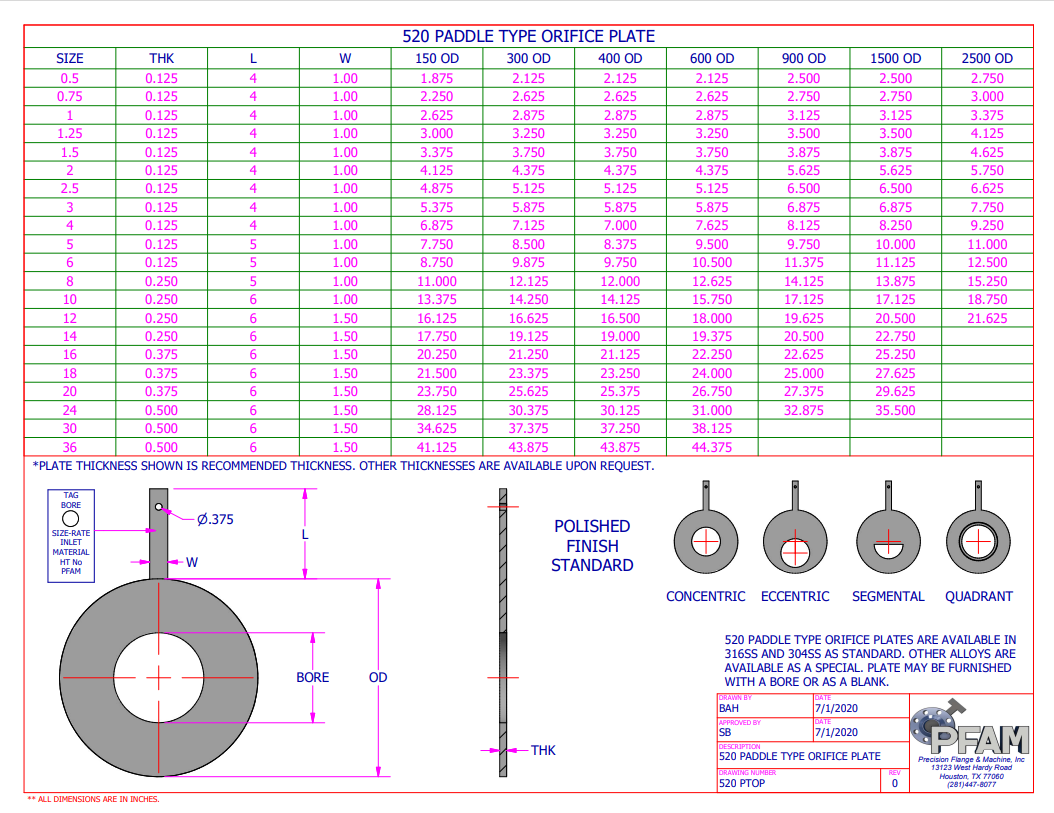

Bore: Concentric, Eccentric, Segmental, or Quadrant Bores offered as Restriction (Square Edge Bore) or Measurement (Bore with Bevel). Precision machined bore with a ±0.0005" tolerance per inch of bore diameter.

• Sizes Available: 0.5″ to 24″, larger sizes are available.
• Thickness: 1/8”, 1/4”, and 3/8”, thicker materials available.
• Material Grades: 516-70, 304/304L, and 316/316L are common, more grades are available.
• Options: Vent and Drain Hole(s) can be added based on customer specification.
• Machine Facing: Polished Finish (Standard) or Serrated Finish
• Applications: Pressure measurement and fluid control in industrial piping systems.
• Ordering Info: Specify size, pressure class, material grade, thickness and bore. Concentric, Eccentric, Segmental, or Quadrant Bore to be stated. Bored for Restriction (Square Edge Bore) or Measurement (Bore with Bevel)
