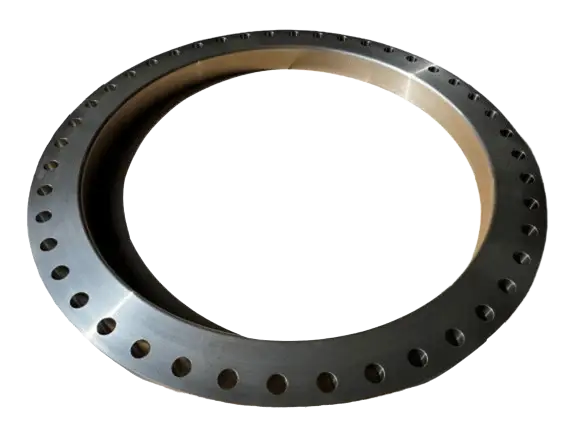

Large Diameter Flanges

Key Features:

Large Diameter Pipeline Flanges are made to customer specified dimensions, Industry Standard, or common specifications, like AWWA (C207, C228), ASME B16.47 (Ser. A or Ser. B), EN1092-1, JIS B2220, API 650, CSA Z245.12 and MSS SP-44.

• Sizes Available: 26″ to 48”
• Material Grades: ASME B16.5 materials of construction.
• Machined Faces: Raised Face, Flat Face and Ring Type Joint precision-machined for a secure fit.
• Applications: Normal Service, Low Temperature Service, High Temperature Service, and NACE.
• Ordering Info: Size, Pressure Class, Schedule, Material Grade, Raised Face or Ring Type Joint, Dimensional Specification and Special Considerations.
